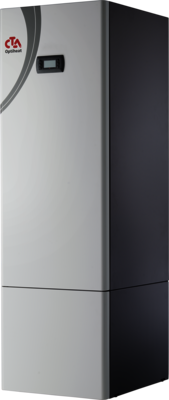

Optiheat Inverta TWW
3-in-1 concept, capacity-regulated, personalised
Key data
Heating capacity range (product family):
2 - 7.5 kW
- One unit for heating, cooling and hot water
- Space-saving all-in-one unit
- No heat billing in block of flats
- Scarcely audible
This unit combines heating, boiler and cooling in a space-saving way. In multi-family houses, the individual room temperature can be set independently. Bills for heating costs are no longer necessary. Long waiting for hot water is a thing of the past, since the cold network connection means there is no heat loss in the distribution system. Suitable for new buildings and renovations.
Technical info
- 220 litres hot water tank with an output capacity of 310 litres at 40 °C
- Reversible (heating and cooling)
- Heat pump controller with graphic display
- Ready for electrical and hydraulic connection
- High-quality sound and thermal insulation
- Integrated components:
Highly efficient circulating pumps
Heating
Safety valves
Brine pressure monitor
Emergency heating element
Manometer
Flow and return sensor
Heat quantity recorder
- Refrigerant R-410A
- Capacity-controlled rotary piston compressor
